Ritchie Roots And Grain Feeder

Description

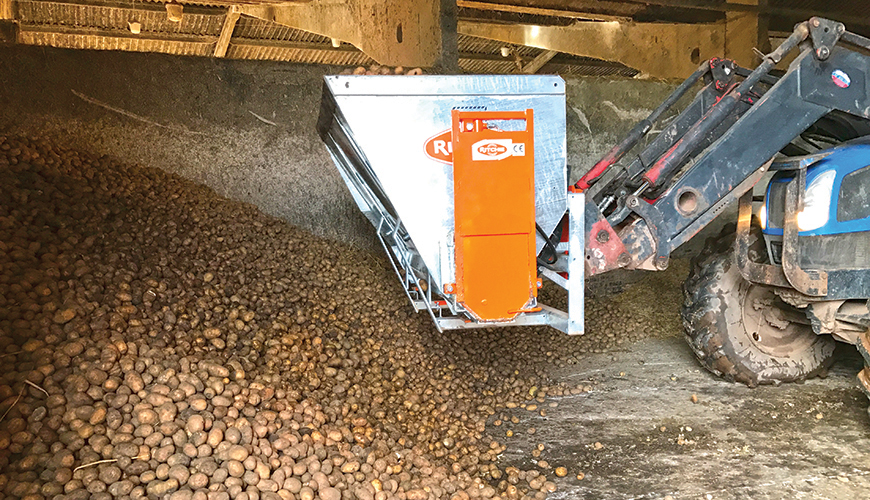

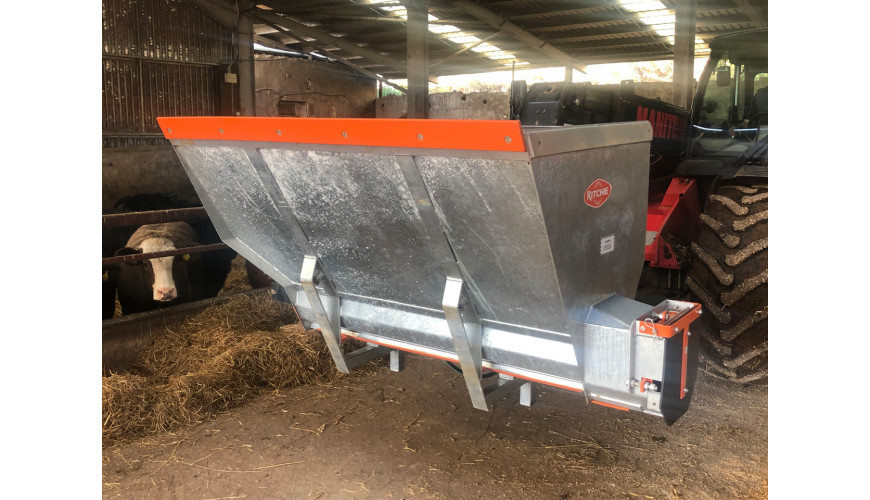

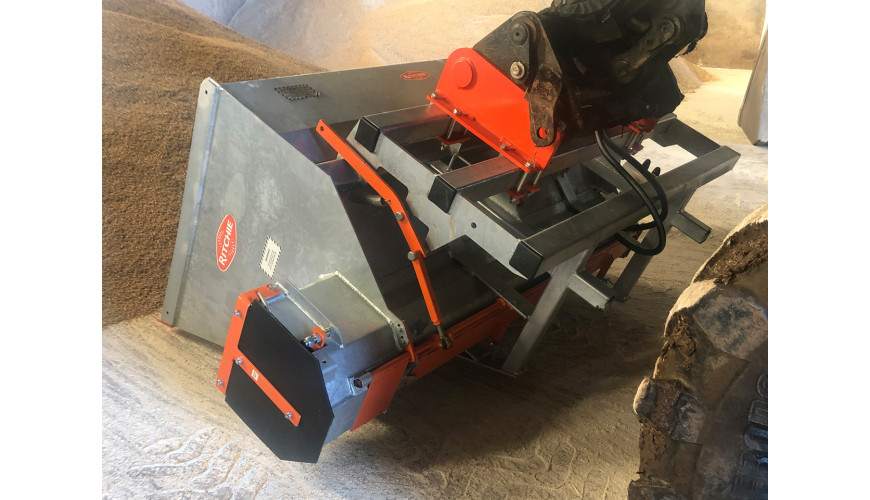

An all hydraulic drive unit suitable for front, rear or telescopic forklift mounting, for feeding most root crops and grains. *Shown with optional hydraulic shutter (1883-500).

A specially designed version is available for telescopic handlers (1883GT).

Main features:

  • Capacity of 1.12m3
  • Hydraulic drive suitable for front, rear or telescopic forklift mounting
  • Hydraulic top link included for tractor mounted self-loading
  • Manual stone trap fitted to eject stones when feeding root crop
  • Full length trash trap under the auger helps deliver cleaner feed

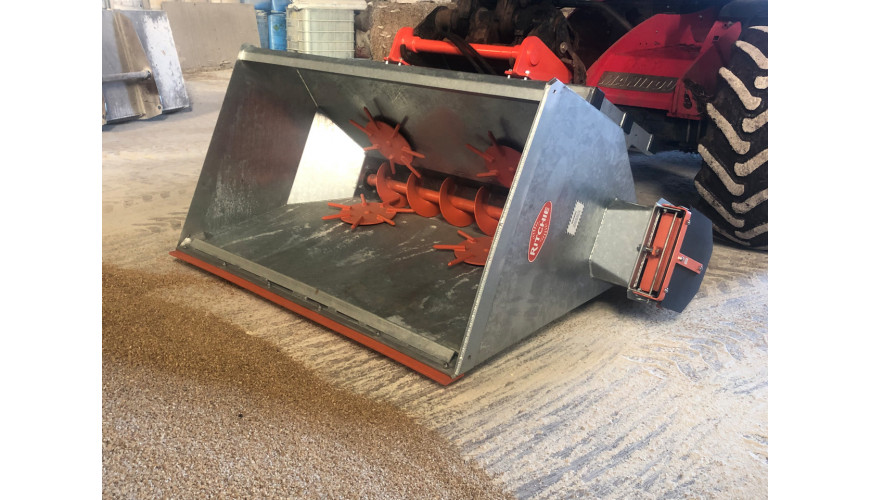

  • Agitator wheels fitted to prevent grain bridging
  • Suitable for any root / grain crop
  • Stationary cutter head for added safety
  • Fitted with pressure relief valve
  • Externally mounted motor is protected by the bucket frame
  • Hot dipped galvanised finish
Dimensions
Length1,720mm
Width2,120mm
Height1,000mm
Weight480kg
Extra Information
Motor Size625cc
Auger Size Dia.230mm
Min. Oil Flow30ltr/min
Min. Oil Pressure142 bar







Additional information

Weight100 kg
