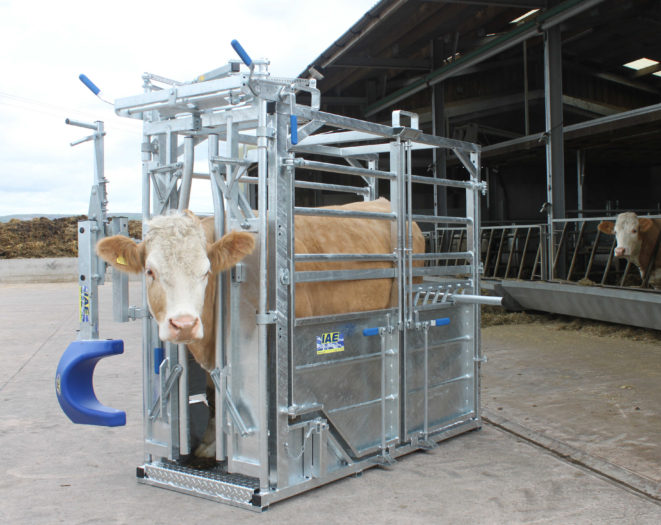

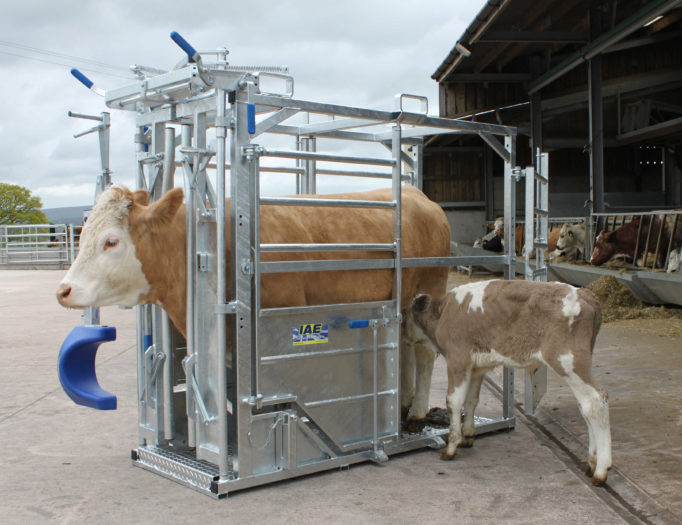

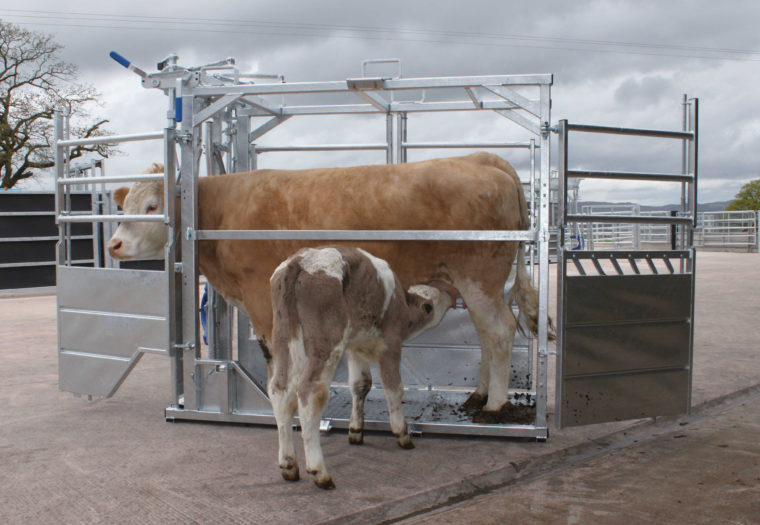

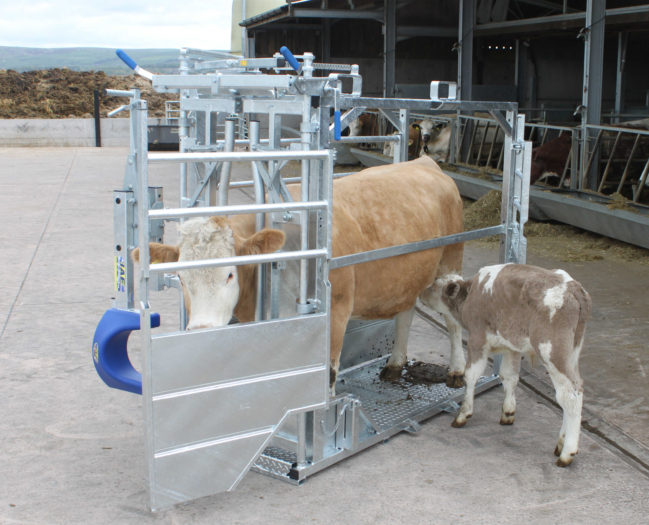

IAE Saracen Suckler Cattle Crush

Description

  • The Saracen Suckler Cattle Crush has a flat floor to encourage easy suckler training side doors extended to meet flat floor
  • Two full height side doors on each side (hinged from each end) allow full access with no obstructions to the animal’s flanks
  • Comes complete with a single removable rail each side which prevents the animal’s body swinging out of the crush when both side doors are opened. This rail can be left in place/situ with the side doors closed
  • Traditional backing up bar facility
  • Rear gate included as standard
  • Pallet fork lifting points welded onto the top horizontal rails
  • Can be manufactured whole or part opposite hand if required (extra cost)
  • Can be manufactured 305mm longer than standard if required (extra cost)
  • Weight 440 kg

Product Details

  • LENGTH – 2340 mm
  • BASE LENGTH – 2030 mm
  • WIDTH – 838 mm
  • INTERNAL WIDTH – 738 mm
  • HEIGHT – 2000 mm

Options Available

Options Available

Product codes

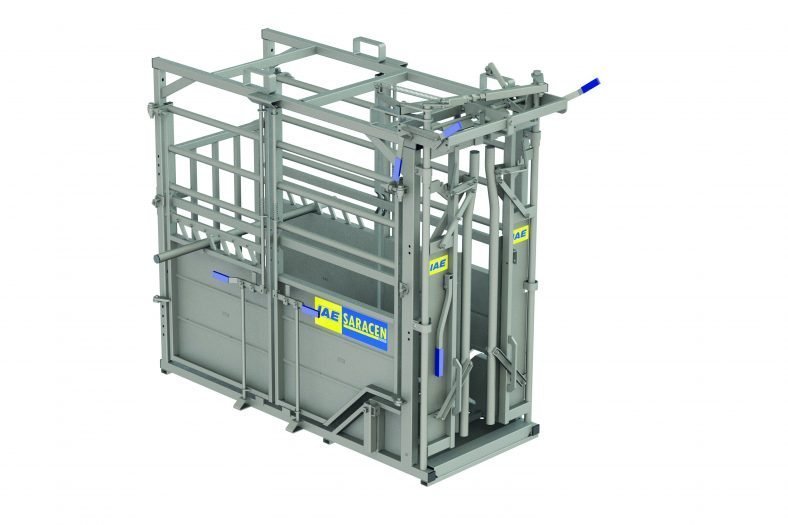

  • F045 2005 05 – Saracen Suckler Cattle Crush



Additional information

Weight1 kg
